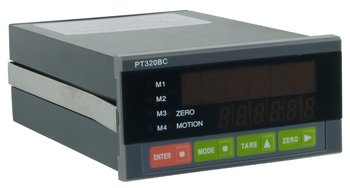

Weigh Batching Controller - PT320BC

Weigh Batching Controller - PT320BC

Product Variant
$2,009.70 AUD
$2,009.70 AUD
Sale Sold out
View full details
  • Description
The PT320BC a feature packed batching controller!
Compact panel mount 196 W x 48H x 162L (1/4din)
4 component, single bin controller.
  • Coarse feed, fine feed, dribble control.
  • Built in serial communications.
  • Dual display, gross and net simultaneously
  • Complete material batching function
  • Front panel entry of setpoints
  • Setpoint saved during power down
  • Discharge control provided
  • Out of tolerance checking
  • Batch report printout info
  • Data setting through RS232/485
  • Automatic zero on power up possible
  • Functions software programmable
  • Digital software calibration
  • Easy access rear plug connectors
  • Automatic multiple rebatching for large volumes
  • Higher A/D conversion rate
  • HIgher display resolution
  • Integrated weight and setpoint controller


  • The batching result can be held by function setting
  • Start condition is programmable by function setting
  • Automatic tare is programmable by function setting
  • Tare check cycle is programmable by function setting
  • Compare inhibit timer separated from coarse fine interchange
  • Re-batch is possible when actual batched value is less than setpoint
Pdf_icon PT320BC Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Maximum Display Resolution 15000
Scale Range 500 to 100000
Step (Division) 1, 2, 5, 10, 20, 50
Linearity Error < 0.0067% FSO
Conversion Rate 200 times per sec.
Input Sensitivity 0.5 mV/V ~ 2 mV/V
Zero Point Adjustment 0.05 mV ~ 15mV
Number of Ingredients 4
Switching Capacity (Open Collector) 80V, 0.3A max
Weight 1 kg
Analogue Output (optional) 0 ~ 5V or 4~20mA, 0-20mA
Mains Supply 110 or 220VAC 50/60Hz
Power consumption 9 VA
Line Filter Built in
Excitation Voltage 10 Vdc, 150 mA max
Load Cell Type All strain gauge types
Operating Temperature Range -10 ~ 50 C (14~122°F)
Relative Humidity 90% non-condensing
Temperature Coefficient (/°C) <0.0008% reading+3 digits
Dimensions (panel mount) 196W x 48H x 162L (¼din)
Built in RS232/485 2400,4800,9600,19200 7E1

DIMENSIONS
PT320BC
