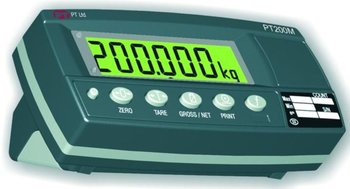

Popular Standard Weighing Indicator Series - PT200M/P

Popular Standard Weighing Indicator Series - PT200M/P

Product Variant
$1,490.90 AUD
$1,490.90 AUD
Sale Sold out
View full details
  • Description
The PT200M and PT200P Series digital weight indicators offer high levels of performance and functionality by combining all the very latest advances in weighing technology into one compact package.

A powerful 24 bit Sigma-Delta A/D converter ensures fast and accurate weight readings are attained.

The four layer, surface mount PCB offers low power consumption and extreme durability under harsh operating conditions.

Comprehensive setup and calibration functions are displayed in plain text for clear understanding by the installer.

The software auto-detects the type of power input (plug-pack or internal batteries) and alters the power saving functions accordingly.


PT200M & PT200P Functions
  • Totalling of weighings
  • High/low level control
  • Clock &  calendar memory
  • lb/kg switching
  • Peak Hold
  • Counting


FEATURES
  • 30,000 displayed divisions
  • 12~24V DC input with power on/off
  • Key 20mm LCD with LED backlighting
  • Sealed membrane keypad (PT200P)
  • Silicon keypad (PT200M)
  • Function key (PT200M/P)
  • RS-232 serial output (PT200M/P)
  • 2 Isolated transistor outputs (PT200M/P)

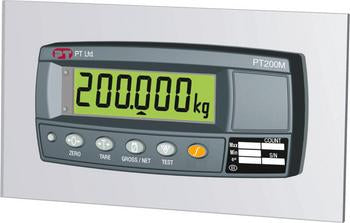

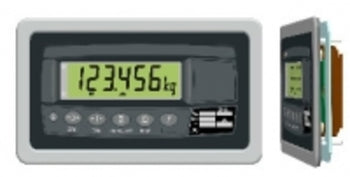

  • Panel mount, desk stand, pole/wall bracket
  • LED backlighting
  • Easy setup, no soldering
  • 4 layer surface mount PCB
  • Built-in EMC protection
  • CE approved
Pdf_icon PT200M/P Series Datasheet
Product Brochure and Specifications
Note: Functions of the current version 3.94 software may differ from previous versions
SPECIFICATIONS
Resolution Up to 30,000 Divisions,
Minimum of 0.25µV/Division,
20 Updates/Second
(Trade 4000 Divns. at 0.8µ/Division)
Zero Cancellation ±2mV/V
Span Adjustment 0.1mV/V - 3.0mV/V Full Scale
Stability/Drift Zero < 0.1µV/°C (+8ppm Deadload Max), Span< 8ppm/°C, Linearity< 20ppm, Noise< 0.2µVp-p
Excitation 5V for up to 4 x 350Ω or 8 x 700Ω Load Cells (4-wire or 6-wire plus shield), Max Total Load Cell Resistance 1.000Ω
A/D Type 24bit Sigma Delta with 8,388,608 Internal Counts
A/D Conversion Rate 20Hz with FIR Filtering . 80dB
Operating Environment -10 ~ 50°C Ambient Temperature, < 90% Non-Condensing Humidity, -20 ~ 50°C Ambient Storage
PT200M IP55 when panel mounted
PT200P IP65
Setup & Calibration Full Digital, Visual Prompting in Plain Messages
Digital Filter Sliding Window Average, 0.1 ~ 4 seconds
Zero Range Adjustable 2 ~ 20% Full Capacity
Display LED Backlit LCD, Six 20mm High Digits With Units & Annunciators
Standard Power Input 12 ~ 24V DC (2.5 VA max), ON/OFF Key With Memory Feature
AC Plug Pack 110/240V AC 50/60HZ Input 12V DC 0.5A Output (optional)
Battery 4 x A4 (Alkaline/Rechargeable NiMH, NiCad, etc. (optionsal)
opto-LINK Data Coupling Infra-red Connector Optional opto-LINK (optional PC USB or RS-232 Port Cable)
Case Materials PT200M: ABS, Silicon, Rubber, Nylon, Acrylic (no halogen used)
PT200P: IP65 Stainless Steel Housing
Linearity Correction 5 point
RS-232 Automatic Transmit For Network or Printer Outputs, 2400, 4800 or 9600 Baud
Assignable Function Key Unit Switching, Counting, Manual Hold, Peak Hold, Total
2 Isolated Transistor Drive Outputs 300mA Total At 50V DC
Battery Backed Clock Calendar Battery Life 10 years Minimum
Packing Weights PT200M: 0.34kg, PT200P: 2.4kg

DIMENSIONS
Dims.
