- Description

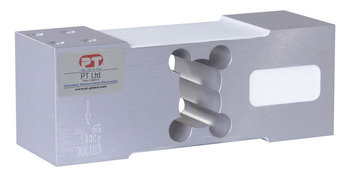

| The PTASP6-G steps up in capacity range (50kg to 600kg) while keeping the same low profile design philosophy as the E-series. It adds two extra sense wires that feed back the actual voltage reaching the load cell, compensating for cable length and improving accuracy on longer runs. Ideal for packaging, filling, and process control scales that need a wider capacity spread. Sealed to IP56. |
 |
PTASP6-G Datasheet |
| Product Brochure and Specifications |
|
SPECIFICATIONS |
|
||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve Sense +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.015% FSO < 2.0% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED GREEN BLUE |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve Sense -ve |
100% Capacity 150% Capacity 300% Capacity 409Ω ± 6Ω 350Ω ± 3Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18V AC/DC 3m long, Ø6.0 mm 6 core screened PVC Aluminium Alloy IP65 BLACK WHITE YELLOW |
| DIMENSIONS | CAPACITIES | |
 |
Model PTASP6-G 50kg PTASP6-G 100kg PTASP6-G 150kg PTASP6-G 200kg PTASP6-G 250kg PTASP6-G 300kg PTASP6-G 500kg PTASP6-G 600kg |
Capacity 50kg 100kg 150kg 200kg 250kg 300kg 500kg 600kg |
