- Description

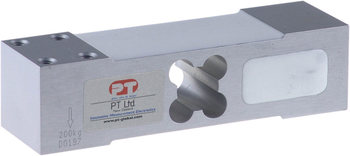

| The PTASP6-E3 shares the compact footprint of the E-series but is built to Class 3 accuracy for applications where higher measurement precision matters. Covering 50kg to 300kg, it suits the same packaging, filling, and process control scales as the standard E-series, with the added confidence of tighter linearity and repeatability tolerances. Sealed to IP65. |
 |
PTASP6-E3 Datasheet |
| Product Brochure and Specifications |
|
SPECIFICATIONS |
|||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.020% FSO < 2% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED GREEN |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve |
100% Capacity 150% Capacity 300% Capacity 406Ω ± 6Ω 350Ω ± 3Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18 V AC/DC 3m long, Ø5.0 mm 4 core screened PVC Aluminium Alloy IP65 BLACK WHITE |
| DIMENSIONS | CAPACITIES | |
 |
Model PTASP6-E3 50kg PTASP6-E3 100kg PTASP6-E3 150kg PTASP6-E3 200kg PTASP6-E3 250kg PTASP6-E3 300kg |
Capacity 50kg 100kg 150kg 200kg 250kg 300kg |
