- Description

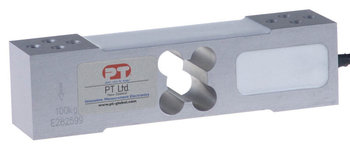

| The PTASP6-E is a medium to high capacity single point load cell with a compact physical footprint relative to its rated capacity, making it well suited to low cost, space-constrained scales from 50kg to 300kg. It's a popular choice for packaging machines, filling lines, and general industrial process control where a straightforward 4-core connection is sufficient. Sealed to IP65. |
 |
PTASP6-E Datasheet |
| Product Brochure and Specifications |
|
SPECIFICATIONS |
|||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.015% FSO < 2% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED GREEN |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve |
100% Capacity 150% Capacity 300% Capacity 406Ω ± 6Ω 350Ω ± 3Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18 V AC/DC 2m long, Ø5.0 mm 4 core screened PVC Aluminium Alloy IP65 BLACK WHITE |
| DIMENSIONS | CAPACITIES | |
 |
Model PTASP6-E 50kg PTASP6-E 60kg PTASP6-E 80kg PTASP6-E 100kg PTASP6-E 150kg PTASP6-E 200kg PTASP6-E 300kg |
Capacity 50kg 60kg 80kg 100kg 150kg 200kg 300kg |
