Shear Beam Load Cell Suppliers: A Guide to Industrial Accuracy and Compliance

Independent Scale Service currently maintains 98% of the concrete plants across Sydney, and our field data confirms that a single load cell failure can halt production for an entire shift. You understand that precision isn't just a preference; it's a strict regulatory requirement under AS 1379. Inaccurate measurements lead to rejected batches and compromised structural integrity, which is why identifying the right shear beam load cell suppliers is a decision that impacts your entire operational bottom line. You need hardware that stays compliant under the most rigorous Australian industrial conditions.

This guide provides the technical framework to help you select a partner that offers more than just a product. We'll show you how to evaluate technical specifications against Australian compliance standards and why NATA-accredited calibration is non-negotiable for your facility. We'll also cover the essential steps to ensure your weighing systems meet ISO/IEC 17025 standards while eliminating the risks of equipment downtime and batching errors.

What are Shear Beam Load Cells and Why are They Industry Standards?

A shear beam load cell is a cantilever-style sensor engineered to measure shear stress rather than the bending moment. These components are the workhorse of the weighing industry. Technical experts and What are Shear Beam Load Cells understand that these sensors provide superior performance in high-capacity environments where precision cannot be sacrificed. Unlike bending beam cells, which can suffer from accuracy drift when the load position shifts, shear beams maintain a consistent output. Leading shear beam load cell suppliers prioritise these designs because they offer a low profile and exceptional resistance to side loads. Shear force is the internal force resulting from a load applied perpendicular to the longitudinal axis.

By 2026, industrial standards will place a higher premium on sensor durability and environmental sealing. Shear beam designs are already ahead of this curve. Their construction allows for high-capacity measurements, often ranging from 500kg to over 10,000kg, without requiring a massive physical footprint. This makes them the standard for applications where vertical space is limited but load requirements are heavy. They're built to survive the rigours of Australian industrial sites, from dusty quarries to chemically intensive processing plants.

The Mechanics of Shear Stress Measurement

The internal strain gauge arrangement is what sets the shear beam apart. Gauges are typically bonded to a thinned-out web section in the centre of the beam, positioned at 45-degree angles. This layout detects the principal tensile and compressive strains caused by the applied load. It's a design that inherently minimises the impact of side loads and off-center loading. If a load isn't perfectly vertical, the shear beam's geometry cancels out the extraneous forces. This ensures the signal remains representative of the actual weight. Most high-quality units from reputable shear beam load cell suppliers are constructed from nickel-plated alloy steel or stainless steel to prevent corrosion.

Key Applications in Australian Industry

In Australia, compliance with AS 1379 is mandatory for concrete batching plants. Shear beam load cells are the primary choice for these facilities because they handle the vibration and heavy throughput of aggregates and cement. They're also the standard for tank and silo weighing assemblies used in bulk material handling. These systems often require three or four cells connected through summing circuits to provide a totalised weight of the vessel's contents. Other common uses include:

• Heavy-duty platform scales for logistics and freight.
• Hopper weighing in food and chemical processing.
• Floor scales in manufacturing plants where forklifts may cause side impacts.
• Industrial pallet truck scales.

Independent Scale Service (ISS) has over 30 years of experience installing and maintaining these systems. We've serviced 98% of concrete plants across Sydney, ensuring their load cells meet NATA-accredited standards. When accuracy is a legal and operational requirement, the shear beam is the most reliable tool for the job.

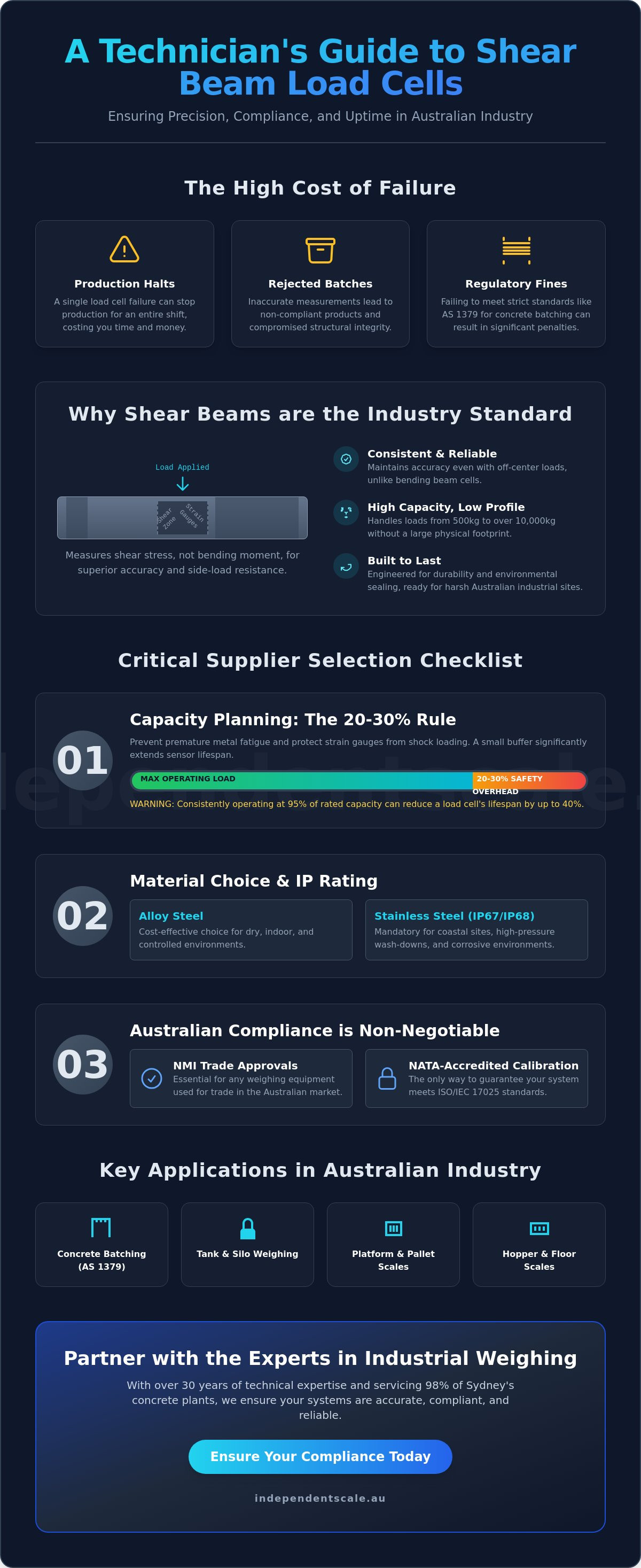

Evaluating Shear Beam Load Cell Suppliers: Selection Criteria

Selecting shear beam load cell suppliers requires more than a price comparison. You need a partner who understands the technical rigour of Australian industrial standards and the specific demands of your operating environment. A critical technical specification is capacity planning. We recommend choosing a cell with 20% to 30% overhead above your maximum expected load. This buffer prevents premature metal fatigue and protects the internal strain gauges from shock loading during operation. Understanding how these Essential System Components for Reliability function at a molecular level confirms why headroom is non-negotiable for long-term accuracy. If a system regularly hits 95% of its rated capacity, the lifespan of the sensor can drop by as much as 40% due to repeated stress cycles.

Material Choice and Environmental Ratings (IP67 vs. IP68)

Material selection dictates longevity. Alloy steel is a cost-effective choice for dry, indoor environments where moisture is controlled. However, for Sydney or Melbourne sites within 5km of the coast, or any facility requiring high-pressure wash-downs, stainless steel is mandatory. You must interpret IP ratings correctly. IP67 ratings signify protection against temporary immersion, while IP68 units are fully sealed to withstand continuous submersion and harsh chemical exposure. Don't settle for water-resistant claims when your application demands a hermetically sealed solution. For concrete plants or chemical processing, stainless steel prevents the corrosion that leads to structural failure and signal drift.

Trade Approval and Regulatory Compliance

National Measurement Institute (NMI) trade approval is a legal requirement for any transaction where the price is determined by weight. If you're selling product by the tonne, your equipment must be NMI-approved. Industrial-use cells without this certification are restricted to internal process monitoring. You should always verify supplier certificates against the manufacturer's data sheets to ensure compliance with AS 1379 or ISO/IEC 17025 standards. Choosing a supplier that offers expert calibration services ensures your NMI-approved hardware remains within legal tolerances over years of heavy use.

When vetting shear beam load cell suppliers, ask for proof of NATA accreditation and specific data on temperature compensation. High-quality cells should maintain accuracy across a range of -10°C to +40°C to handle the Australian climate. You can browse our range of NMI-ready load cells to find a match for your specific industrial application.

Beyond the Cell: Essential System Components for Reliability

Many industrial operators mistakenly believe the load cell is the only point of failure in a weighing system. While the sensor is critical, it's part of a larger ecosystem where peripheral components often dictate long-term reliability. Leading shear beam load cell suppliers emphasize that accuracy isn't just about the cell; it's about the integrity of the entire signal chain. In Australian concrete plants and silos, environmental factors like humidity and electrical storms pose constant threats to system uptime.

Reliable data visibility starts with high-quality indicators and displays. These units serve as the primary interface for operators, providing real-time weight data and diagnostic codes. For outdoor assets like grain hoppers or cement silos, surge arrestors aren't an optional add-on; they're a mandatory investment. A single lightning strike or power surge can destroy an unprotected network of cells, leading to thousands of dollars in replacement costs and lost production time.

Summing Circuits and Junction Box Calibration

In multi-cell systems, summing boards are the bridge between individual sensors and the main indicator. Their primary role is to ensure every corner of a platform weighs identically. Without precise calibration of the summing circuit, a 2000kg load might show a 10kg variance depending on its position. This level of error is unacceptable under NIST Handbook 44 standards and AS 1379 compliance requirements. Faults in junction boxes and surge arrestors typically stem from moisture ingress or loose terminal screws. We've found that 35% of signal instability issues are resolved simply by upgrading to IP68-rated enclosures with high-quality desiccant packs to prevent condensation.

Signal Conditioning and Data Transmission

Raw millivolt signals are highly susceptible to electromagnetic interference from nearby motors and heavy machinery. Modern 2026 industrial setups use conditioners and transmitters to convert these weak analogue signals into robust 4-20mA or digital outputs. Digital transmission offers superior noise immunity and allows for easier integration with PLC systems. When you work with professional shear beam load cell suppliers, they'll recommend shielded cabling to maintain signal purity over long distances. Moisture protection at connection points is vital; even a tiny amount of corrosion on a terminal can cause significant signal drift. Ensuring cable integrity through proper conduit and sealing prevents the 15% drop in accuracy often seen in poorly maintained industrial weighing systems.

Compliance and Calibration: The NATA Difference

Purchasing hardware from shear beam load cell suppliers is only the first step in securing industrial accuracy. Many suppliers distribute components without the technical infrastructure to support them after the sale. This creates a significant operational risk. Without load cell calibration performed to NATA-accredited ISO/IEC 17025 standards, your equipment lacks legal traceability. This accreditation isn't just a certificate; it's a guarantee that the measurement results are recognized by international bodies and Australian regulators.

A frequent objection from procurement teams is that factory calibration certificates are sufficient. They aren't. A factory certificate only confirms that the cell functioned in a laboratory setting. Once integrated into a silo, hopper, or platform, variables like mounting eccentricity, cable resistance, and environmental vibration alter the output. On-site calibration is the only method to verify the entire weighing system performs within tolerance in its actual working environment. This process protects your business against safety liabilities and costly commercial disputes over weight discrepancies.

AS 1379 Compliance for Concrete Batching

In the Australian construction sector, compliance with AS 1379 is mandatory. This standard sets strict weighing accuracy requirements for concrete production to ensure the structural integrity of the final product. Inaccurate measurements lead to weak concrete batches, which can result in catastrophic structural failures. To remain compliant, concrete batching plant calibration must occur every six months. Independent Scale Service currently maintains compliance for 98% of concrete plants across Sydney, providing the precise documentation required for heavy-industry audits.

The Calibration Process: Gravimetric vs. Force Methods

Professional on-site calibration typically involves two primary methods. The gravimetric method uses physical NATA-certified test weights to verify accuracy. The force method utilizes a master load cell and hydraulic press to apply known forces. During a site visit, technicians record "As Found" data, which shows the system's accuracy before any changes. After adjustments, "As Left" data is recorded. This dual data set is essential for a robust audit trail. For more technical details on these processes, consult the authoritative guide to calibration services.

Independent Scale Service: Your Partner in Industrial Weighing

Independent Scale Service (ISS) brings over 30 years of specialized Australian expertise to the industrial weighing sector. We don't just sell hardware; we provide a technical partnership built on reliability and precision. Our team manages a comprehensive load cell supply sourced from world-class manufacturers to ensure your facility operates at peak performance. For operators in Sydney and Melbourne, we offer unique 24/7 emergency repair and breakdown support. This commitment ensures that critical infrastructure stays operational, effectively eliminating the risk of extended downtime during high-volume production cycles.

As one of the most trusted shear beam load cell suppliers in the region, ISS delivers an end-to-end service model. We manage everything from the initial selection of components to NATA-accredited certification. Our approach is direct and technical. We understand that in heavy industry, a measurement error of even 1% can lead to significant financial loss or compliance failure. That's why we focus on delivering systems that meet the most rigorous Australian standards.

Specialized Weighing Solutions

Our engineering team excels in complex installations, particularly tank and silo weighing assemblies. These environments require specialized mounting kits that can handle thermal expansion and wind loading. We also design custom solutions using special purpose and shackle pins for unique load paths where standard shear beams aren't feasible. Our reputation is backed by a proven track record with Tier 1 clients like Holcim, Boral, and Hanson. We currently service 98% of concrete plants across the Sydney metropolitan area, ensuring every batch meets strict quality requirements.

Get Started with a Compliance Audit

Maintaining long-term accuracy requires more than just high-quality hardware. During a compliance audit, our technicians evaluate your existing load cells for physical wear, moisture ingress, and signal drift. Working with a single partner for supply, repair, and calibration simplifies your supply chain and ensures accountability. ISS is NATA-accredited to ISO/IEC 17025, providing the legal and technical assurance required for heavy industry and trade-legal applications.

• Detailed inspection of summing circuits and cable integrity.
• Verification of AS 1379 compliance for concrete batching plants.
• Gravimetric method calibration for maximum precision.
• Immediate 24/7 support for Sydney and Melbourne metropolitan areas.

Our technicians don't just replace parts; they diagnose the root cause of failures to prevent recurrence. Precision isn't optional in the concrete and aggregate sectors, and we're here to ensure your scales stay accurate. Contact our team today for immediate industrial support across Australia and secure your facility's operational integrity.

Optimise Your Industrial Weighing Performance

Achieving consistent accuracy in harsh industrial environments requires a combination of robust hardware and precise technical oversight. Selecting reputable shear beam load cell suppliers is critical for ensuring your systems maintain the structural integrity and signal reliability needed for heavy-duty applications. Beyond the initial purchase, ongoing compliance with AS 1379 and NATA standards is the only way to guarantee your data remains legally and operationally defensible.

Independent Scale Service leverages over 30 years of industry experience to support your facility. We're NATA Accredited to ISO/IEC 17025 and act as AS 1379 compliance experts for 98% of concrete plants across Sydney. Our team doesn't just supply parts; we provide a full-service partnership that includes emergency 24/7 breakdown support to eliminate costly downtime. Whether you're upgrading an existing batching plant or installing a new weighing system, we've got the technical expertise to keep your operations compliant and efficient.

Request a Quote for Load Cell Supply and Calibration today to secure your plant's accuracy. We look forward to helping you maintain the highest standards of industrial precision.

Frequently Asked Questions

What is the typical lead time for shear beam load cell supply in Australia?

Standard lead times for stocked items range from 24 to 48 hours for delivery across Sydney and major regional hubs. Most shear beam load cell suppliers in Australia maintain local inventory for common capacities between 500kg and 5,000kg. For specialised units or high-capacity orders exceeding 20 tonnes, international procurement can take 4 to 6 weeks. We prioritise rapid dispatch to ensure your industrial weighing systems experience minimal downtime.

Can I replace a single shear beam load cell in a four-cell system?

You can replace a single cell if the new unit matches the existing cells' output sensitivity (mV/V) and capacity exactly. It's vital to verify the specifications on the original calibration certificate to ensure compatibility with the summing circuit. If your current cells are over 7 years old, replacing the entire set is often more cost-effective to prevent future imbalances. Any replacement requires a full corner test and recalibration to maintain system accuracy.

What is the difference between a shear beam and an S-type load cell?

Shear beam load cells are designed for compression applications like floor scales, hoppers, and platform weighing. They feature a low profile and high resistance to side forces, making them stable for multi-cell configurations. S-type load cells are primarily used for tension applications, such as suspended tanks or crane scales. While shear beams are bolted to a base, S-types are typically hung using rod-end bearings to measure vertical pulling forces.

How often should shear beam load cells in a concrete plant be calibrated?

Concrete plants must perform calibrations every 6 months to comply with AS 1379 standards. This frequency ensures that gravimetric batching of cement, water, and aggregates remains within the mandatory 1% to 2% accuracy tolerance. High-volume facilities producing more than 60,000 cubic metres of concrete annually often schedule quarterly inspections. Regular testing prevents batching errors that lead to compromised structural integrity and expensive rejected loads.

Are stainless steel load cells worth the extra cost for indoor use?

Stainless steel is essential for indoor environments that involve high humidity, chemical exposure, or strict wash-down protocols. While alloy steel units are less expensive, they're susceptible to corrosion in damp conditions, which eventually causes signal failure. In dry, climate-controlled warehouses, alloy steel is sufficient. However, about 85% of our food processing clients invest in stainless steel to ensure a service life exceeding 10 years under harsh sanitation cycles.

What happens if a load cell fails during production?

A load cell failure usually causes the weight indicator to display an error code or show "drifting" values, which halts production immediately. This downtime can cost facilities upwards of A$2,500 per hour in lost productivity and wasted materials. Our 24/7 emergency service team responds to these failures by isolating the faulty cell within the summing box. We carry mobile stock to perform immediate replacements and restore AS 1379 compliance on-site.

Do you provide NATA certificates for all new load cell installations?

We provide NATA-endorsed calibration certificates upon request for all installations requiring ISO/IEC 17025 compliance. These documents are a legal necessity for trade-approved scales and quality-critical manufacturing processes. Each certificate provides documented traceability of our test masses to national standards. We maintain strict NATA accreditation to ensure your equipment stands up to the rigorous audit requirements of the Australian construction and mining sectors.

What are the signs that a shear beam load cell is drifting or failing?

The most common indicator is an unstable zero point where the scale won't return to 0.00kg after the load is removed. You might also notice "creep," where the weight reading slowly fluctuates while a static load remains on the platform. If a corner test shows a variance of more than 0.1% between different sections of the scale, the internal strain gauge is likely degraded. Physical signs like cable damage or moisture ingress in the junction box also signal imminent failure.
